MAGNUM DYNALAB MD90: INCREDIBLE FM PERFORMANCE AT A REASONABLE PRICE

MAGNUM DYNALAB MD90
MAGNUM DYNALAB MD90
Item# MADMD90
Regular price: $1,400.00
Sale price: $1,299.00
90T: Tube Output Version:  Finish:  Remote Control:  Analog Output:  Kimber Silver Wire:

Product Description

As successor to the FT101A, one of the most sensitive, selective and sonically accurate FM tuners of our time, the MD-90 continues the tradition by re-defining state-of-the-art in analog FM tuner design.

As did the FT-101A, the MD-90 combines the very latest in discrete, analog technology. Its highly renowned MOSFET front end provides 3 stages of very careful and precise amplification. Here even the most fragile of signals is strengthened and further defined by using highly effective "group delay" filtering. The result is a sonically correct audio signal, one that contains all the inherent richness and brilliance of the source being broadcast.

In addition to the features offered by its predecessor, the MD-90 now offers even greater selectivity in order to deal with urban signal congestion. The MD-90's automatic variable blend which is keyed to signal strength, to maintain a quiet stereo output under low signal conditions. In the "off" position, separation is maintained at maximum, regardless of signal input level.

The MD-90 now incorporates all functions in a totally redesigned motherboard. This integration has provided the necessary design efficiencies to allow consistently higher levels of selectivity to be maintained. Along with added selectivity, the MD-90 has a redesigned power supply circuit that maintains the tuner circuitry at standby at all times when the tuner is connected to a live AC source. The MD-90 can now also house the analog remote system (FTR) inside the chasis allowing for precise analog tuning through the optional infra red remote control. (sold optionally)


FEATURES AND FUNCTIONS:

Dual, keyed automatic gain control (AGC) - Monitors and maintains program signal level and clarity, along with providing a dramatic reduction in interference from strong, local stations.
Wide/narrow IF bandwidth control - Switchable to effectively control annoying sideband interference.
Mute circuit - noise-activated with manual defeat switch.
Stereo/Mono Mode - User switchable.
Digital frequency display - Independent frequency counter derives input from tuner's local oscillator section and displays in soft, amber 0.5" LED numerals.

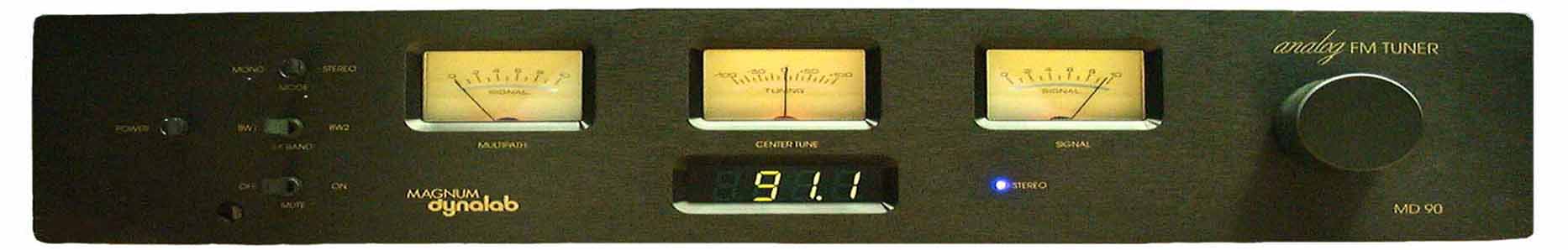

Large, easy-to-read panel meters provide continuous monitoring of rf input level, multipath interference level and center-tune condition.

Frequency tuning is via a precision potentiometer which provides a precise, filtered voltage for the tuning varactors. Visual output is via the digital frequency display. The actual tuning mechanism consists of an ultra smooth, large, front panel control knob.

Function switching is provided through tactile, toggle switches with oversize replaceable paddles.

WHY ANALOG?

In contrast with the frequency synthesis method of tuning, analog is not dependent on a digital microprocessor chip to establish the tuner's receive frequency. With analog, tuning is accomplished using specially-selected, discrete components in the tuner's critical "front end." In the Dynalab design, these components are selected and matched so that a unique balance of sensitivity, selectivity and sound can be maintained.

However, the most significant advantage in analog is that is delivers control into the hands of the user. With the MD-90, infinite tuning is available in order to establish maximum stereo separation or to detune slightly in order to minimize on-frequency noise. With frequency synthesis tuners, this capability is offered usually in fixed, 50KHz steps. While FM stations themselves are rarely found to be transmitting outside the +-2KHz standard, FM station signals that are rebroadcast over cable may not be quite so precise.

SPECIFICATIONS

Usable sensitivity (mono) 10.3dBf
  Usable Sensitivity (stereo) 11.2dBf
50dB quieting Sensitivity (mono) 13.2dBf
50dB quieting Sensitivity (stereo) 34.0dBf
Capture Ratio 1.5dB
Image Rejection 75.0dB
Signal to Noise Ratio (SNR) 75.0dB
Alternate Channel Attenuation (wide) 60.0dB
Alternate Channel Attenuation (narrow) 80.0dB
Adjacent Channel Attenuation (wide) 9.0dB
Adjacent Channel Attenuation (narrow) 25.0dB
THD (mono) 0.1%
THD (stereo) 0.18%
Stereo Separation 60.0dB
AM Suppression -70.0dB
SCA Rejection -75.0dB
-3dB frequency response 20Hz - 17KHz
Power Required 120vac @ 25 watts max.
Dimensions 19"(w) x 13" (d) x 3.5" (h)
Weight 12 lbs

Also available in 220 and 240VAC with either North American or European FM deemphasis. North America deemphasis is provided if not specified otherwise.

Faceplate - Available in 17 3/4" black and 19" black.(standard)
silver and gold anodized finishes.(optional)

Option Available - Kimber wiring in significant signal paths-improves detail and high frequency extension

Option Available - Internal IR remote system

The MD-90 utilizes a direct trickle down technology found within theDynalab MDseries MD-100 tuner and the "Pro-101." Along with providing the FM broadcaster with a sonically correct receiver in order to maintain audio signal quality standards more reliably, the "Pro-101" incorporates circuitry specifically for use in the FM broadcaster/repeater plant.

OPTION - ANALOG Remote Control

Certain manufacturers feel that in order to build a remote-controlled tuner the signal in the front end must be digitized, whereas we at Magnum Dynalab feel that this is where the problems start when you are trying to produce the best sound. We have designed a special ANALOG remote control which maintains the finite tuning and sound produced with our ANALOG tuners. The remote is optional and can be added to any of our tuners at any time.

Features of the Magnum Dynalab ANALOG Remote

  • On/Off switch
  • Five station presets
  • Remote fine tuning
  • Hard wire control interface

We feel that you should not sacrifice the great sound received from your tuner in order to obtain the convenience of a remote control.
