The front panel features a large OLED (Organic Light Emitting Diode) display. The white on black display provides higher clarity and resolution than a normal display and has a wide range of customised graphic symbols. Display brightness levels can be changed or turned-off, if not required, via the menu system.

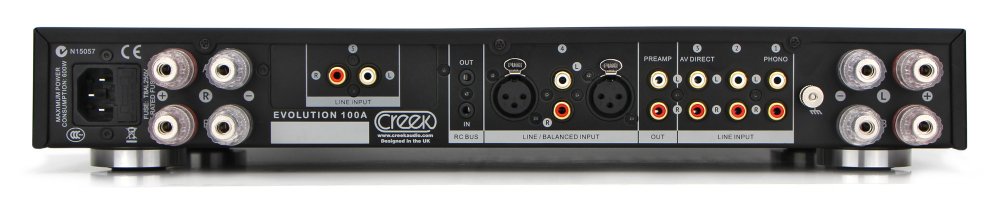

In addition to greatly increased performance, thanks to ingenious new circuit design, the EVOLUTION 100A has been equipped with 2 sets of high quality loudspeaker binding posts, with local and remote switching for A & B outputs. Optional extras include the ability to plug the Sequel mk2 Phono pre-amp inside and add the AMBIT FM/AM radio or RUBY DAC/Bluetooth/FM radio module to the expansion slot on the rear panel.
At the heart of any high-end amplifier there must be a good power supply; The EVOLUTION 100A (110 watts per channel)uses a massive 360 Watt, low profile, toroidal mains transformer, with multiple windings for high and low voltages and current, to separate the power amp, pre-amp and digital circuitry. Creeks long-standing design policy of paralleling several small capacitors in the power supply creates an ultra-high specification capacitor, with low inductance and ultra low impedance. This significantly improves filtering and helps produce a very powerful and accurate sound from such a relatively small amplifier.
