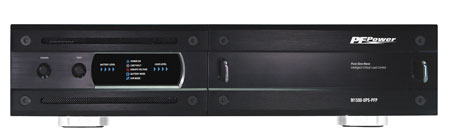

The PFPower M1500-UPS-PFP provides a comprehensive battery
backup solution for A/V components (such as DVRs and DLP projectors), DAW
workstations, and other electronics which must maintain critical memory and be
shut down properly in the event of a power outage. Ideal for use in environments
ranging from recording studios to your own home theater system, the PFPower
M1500-UPS-PFP allows your equipment and data to avoid the potential hazards
caused by a power outage.
True Sine Wave Output
With true sine wave AC output, the voltage wave form from battery power matches
that from true AC power. This minimizes harmonic distortion, electrical noise
Critical Load Function
One of the user programmable settings in the included Power Control software is
the Low Battery NCL Shutoff threshold. This sets the battery capacity level at
the point where the non-critical load outlets are turned off and all remaining
battery power is reserved for equipment plugged into the 2 critical load
outlets. This value is stored internally by the UPS and is not dependent on
having the software running on a computer.
Learning IR Control
The learning IR function lets you program the UPS to send standby or shut-down
commands to components that require an internal shut down procedure. With a DLP
projector, for example, the projectorâ€™s lamps are turned off while the UPS
continues providing battery power to the projectorâ€™s cooling fan. Proper
shutdown is ensured and expensive lamps are protected from damage.
IR Power Failure Operation
The UPS can learn two IR commands. The learned commands will be transmitted on
both output jacks so you have the ability to control 2 different pieces of
equipment or use a 2-step macro for one component.
The IR Output Delay switches provide the ability to "ride
through" brief power outages without sending a shut-down signal to the connected
device. You have a choice of a 30 second or 5 minute delay.
- Battery backup with 1500VA capacity.
- True sine wave output.
- Voltage regulation: 88-147 VAC in, 120 VAC ±5% out
- Critical Load Management: 2 of the 6 outlets reserve
power for equipment that needs to stay online the longest, such as Digital
Video Recorders, external hard drives, and components with volatile memory
- RS232 interface provides programming control and
interface for automation systems and personal computers.
- Superb noise filtration and over/under voltage circuitry
protects and maximizes performance of connected equipment.
- IR control sends "Off" command to components that require
a shut down procedure (component must be capable of receiving IR commands).
- 3 Year Product Warranty.
||1500VA / 1000W
||88Vac - 147Vac, 47 - 63 Hz
|Spike Protection Modes:
||Line to neutral, line to ground, neutral to ground
|Spike Clamping Voltage:
||Initial turn-on at 200 volts; TVSS rating of 400
volts peak at 500 amps, L-N, N-G, L-G (tested to UL-1449)
||Pure Sine Wave
|Transverse Noise Attenuation:
||50dB (100kHz to 1MHz)
|Single Pulse Energy Dissipations
||4” H x 17” W x 15.75” D. (w/ feet). Rack mount kit
||6 total (2 assigned critical load)
|Safety Agency Listings:
