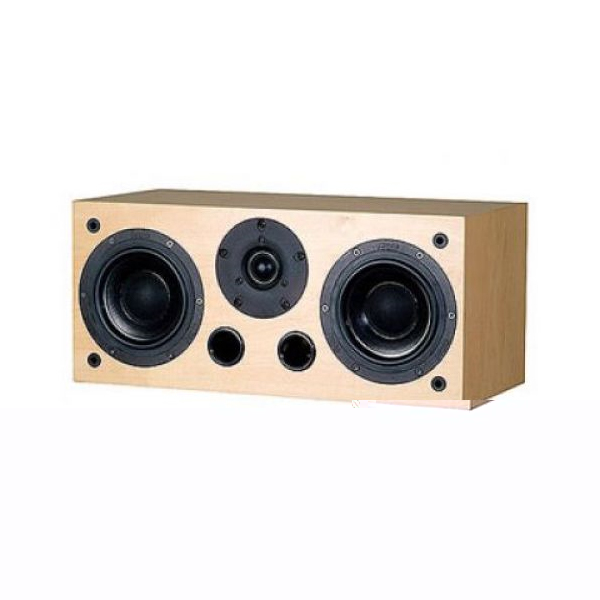

The ProAc Studio Center makes an obvious partner for the ProAc Studio
110/130/140 models. A 5 inch version of the 61/2 inch bass driver used in the
Studio range was designed using a special coated pulp cone and partnered with a
new version of the Studio range tweeter, incorporating a shielded magnet system
which will prevent interference with CRT monitors. With the advent of higher
dynamics, bandwidth and speech emanating from the centre, we decided to design a
new centre channel which would effectively reproduce this extra information.
The new ProAc Studio Center Channel has taken two years to perfect. The
cabinet is marginally bigger than the CC1 with two new bass drivers and is front
ported as opposed to the rear ported design of the CC1. This allows for improved
matching and placement, making the ProAc Studio Centre Channel a perfect match
for the entire ProAc range. Careful crossover design has also meant that it is
highly suitable for use with other makes of home cinema speakers, bringing an
open and natural quality to center channel reproduction. Great emphasis was
placed in the design process to produce a natural, open midrange with extra
bandwidth for the music and sound effects reproduced by the center channel.
Efficiency and sensitivity have been improved over its predecessor and there is
also greater bass extension and power.
In summary, the ProAc Studio Center Channel is a perfect match for our Studio
and Response ranges or any good quality system where an excellent, compact
center channel is required.
ProAc Studio Center Speaker Specifications:
Amplifier Power Range 10 - 150 watts
Bass Driver 5 1/4"
Tweeter driver 1"
Sensitivity (1 watt at 1m) 89dB
Frequency Response at 3dB 35Hz-30kHz
Impedance 4 Ohm
Weight 20 lbs
Dimensions (HxWxD) in inches 7.9x17.56x8.16
